• Standard colour grey / optional colour black

• Number of connections: up to 12- Number of splices: 72

• Cable entries/exits are made on the GEL block integrated in the stowage plate (30% time saving vs. previous generation)

• Fast cable stowage by individual CTU

• Type device or by direct stowage on the plate

• WRAP AROUND design: possibility of 360° intervention on cabled box

• Designed to be used without tools

• Quick closing and reopening of the cover/base connection by means of a toggle

• MOBRA CLIP wall mounting system included in the kit

• The organiser integrates all splicing cassettes (4x12 splice capacity + 1x 24 splice) as standard

• IP68 waterproof splice protection (2 m of water)



New features :

• New organiser with 4 individual S12 cassettes

• Simplified management of incoming and outgoing fibres

• Possibility to secure a cassette for FTTO applications

CSC-100-Lot de 6 CTU- Ø 0-6,2 (DROP Simple)

Description coming soon

OSBO FRS -CSC-100-IP68 PBO12 / 1xD0-14_1xD0-6,2_6xCTU-D0-6,2_Fix_NOIR
CSC-100-IP68 PBO6 / 1xD0-14_1xS0-12_6xCTU-S0-6,2_Fix_GRIS

Description coming soon

CSC-100-IP68 PBO6/12_72ép / 1xD0-14_1xS0-12_6xS0-6.2_Fix_GRIS_NG

• Standard colour grey / optional colour black

• Number of connections: up to 12- Number of splices: 72

• Cable entries/exits are made on the GEL block integrated in the stowage plate (30% time saving vs. previous generation)

• Fast cable stowage by individual CTU

• Type device or by direct stowage on the plate

• WRAP AROUND design: possibility of 360° intervention on cabled box

• Designed to be used without tools

• Quick closing and reopening of the cover/base connection by means of a toggle

• MOBRA CLIP wall mounting system included in the kit

• The organiser integrates all splicing cassettes (4x12 splice capacity + 1x 24 splice) as standard

• IP68 waterproof splice protection (2 m of water)



New features :

• New organiser with 4 individual S12 cassettes

• Simplified management of incoming and outgoing fibres

• Possibility to secure a cassette for FTTO applications

CSC-100-Lot de 6 CTU- Ø 0-6,2 (DROP Simple)

Description coming soon

OSBO FRS -CSC-100-IP68 PBO12 / 1xD0-14_1xD0-6,2_6xCTU-D0-6,2_Fix_NOIR
CSC-100-IP68 PBO6 / 1xD0-14_1xS0-12_6xCTU-S0-6,2_Fix_GRIS

Description coming soon

CSC-100-IP68 PBO6/12_72ép / 1xD0-14_1xS0-12_6xS0-6.2_Fix_GRIS_NG

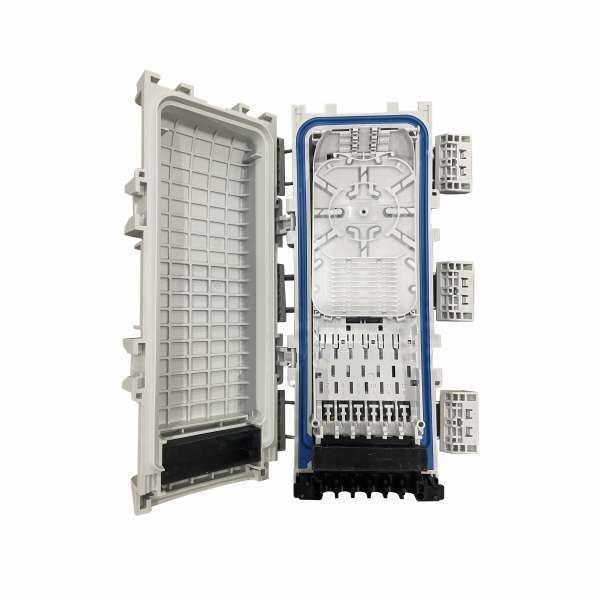

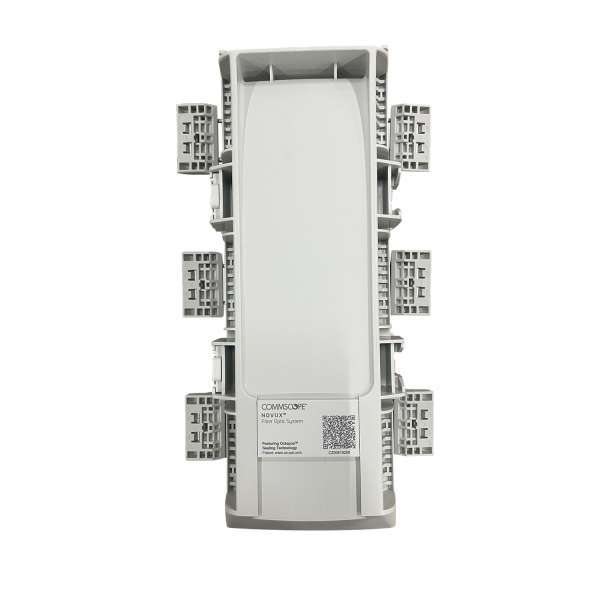

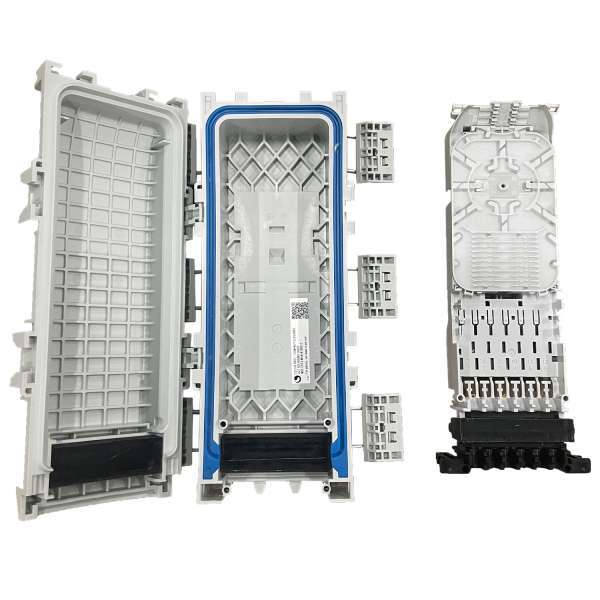

PBO NovuX™ CSC100 New Generation


This new generation of splice protection can be used in chamber, underground, sewer and overhead applications. This new CSC100 organiser offers new features and allows PBO and BPE applications
