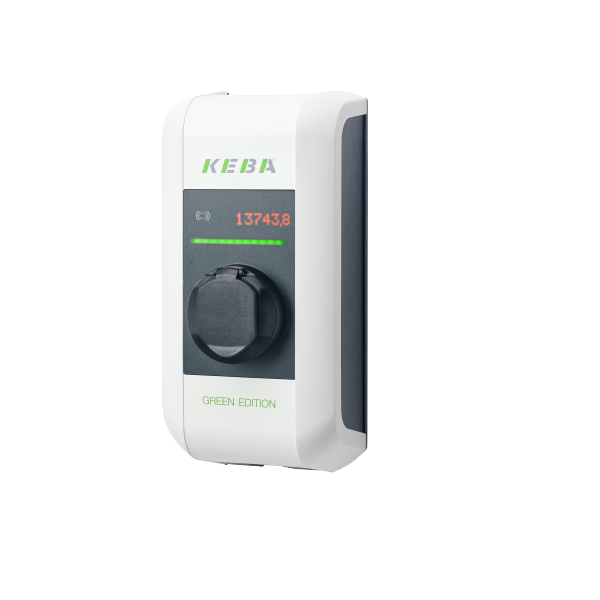

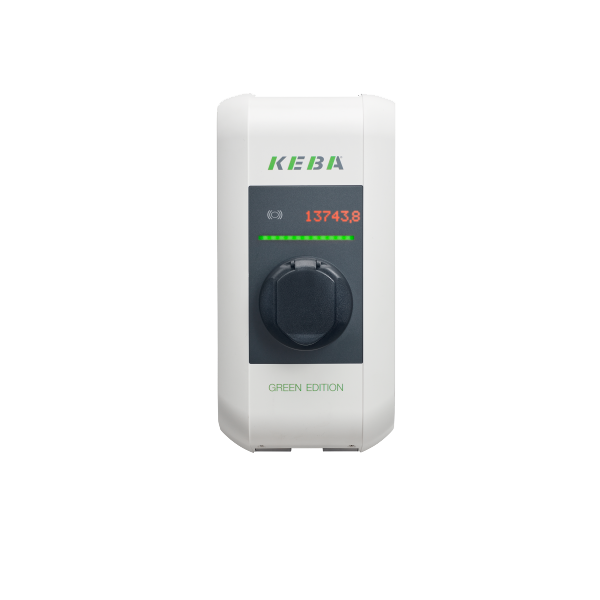

Tetradis : c-series AC GREEN EDITION charging station

• Up to 22 kW of charging power (for 10 times faster charging)

• The charging station can also be installed in single phase. That is, the maximum charging power would be 7.4kW.

• Integrated energy meter

• Weight: 6.8 kgs

• White colour

• Protection class: IP54 protected against splashing water, suitable for outdoor use

• Mounting possibilities: Wall mounting, pedestal column

• Access protection: RFID

• Communication via LAN connection

• Built-in DC fault current sensor

• Voltage: 230/400V

• Phase: three-phase

• Integrated 6m type 2 charging cable (Suitable for all type 2 electric vehicles)

• Compatible with services: photovoltaic energy management

• CO2-neutral Green edition

Description coming soon

Charging station P30 c-series GREEN EDITION

• Up to 22 kW of charging power (for 10 times faster charging)

• The charging station can also be installed in single phase. That is, the maximum charging power would be 7.4kW.

• Integrated energy meter

• Weight: 6.8 kgs

• White colour

• Protection class: IP54 protected against splashing water, suitable for outdoor use

• Mounting possibilities: Wall mounting, pedestal column

• Access protection: RFID

• Communication via LAN connection

• Built-in DC fault current sensor

• Voltage: 230/400V

• Phase: three-phase

• Integrated 6m type 2 charging cable (Suitable for all type 2 electric vehicles)

• Compatible with services: photovoltaic energy management

• CO2-neutral Green edition

Description coming soon

Charging station P30 c-series GREEN EDITION

c-series AC GREEN EDITION charging station

NRJB-00-125035

The online charging station for intelligently controlled charging.In addition to the functionalities of the a-series, the c-series equipment series includes other communication interfaces, for example Ethernet LSA+ for a permanent communication link with Smart Home Server or another KeContact P30 terminal.

Thanks to the KeContact P30 c-series terminal, people with a company vehicle can provide the account of the electricity recharge made at home to the company or the leasing company.
