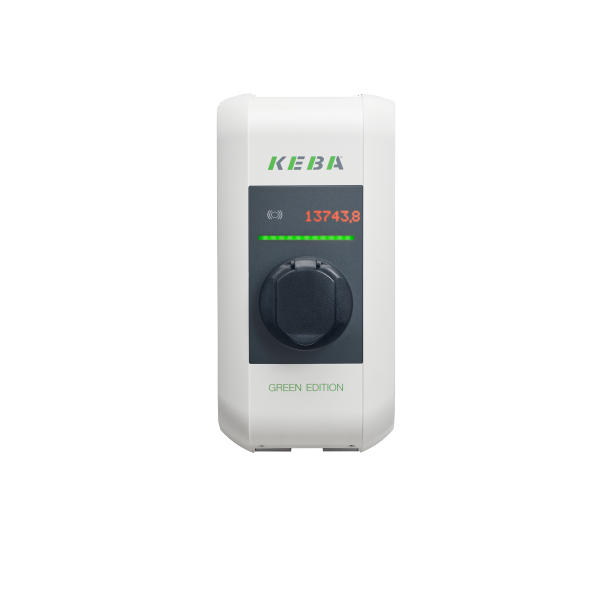

Tetradis : Charging station x-series AC GREEN EDITION

• Up to 22 kW of charging power (for 10 times faster charging)

• The charging station can also be installed in single phase. That is to say that the maximum charging power would be 7.4kW

• Integrated energy meter

• Weight: 6.8 kgs

• White colour

• Protection class: IP54 protected against splashing water, suitable for outdoor use

• Mounting possibilities: Wall mounting, pedestal column

• Access protection: RFID

• Communication via LAN connection

• Controller power management: controls up to 15 expansion unit charging points

• Built-in DC fault current sensor

• Voltage: 230/400V

• Phase: three-phase

• Compatible with various back-end systems via OCPP

• Controllable via UDP and Modbus TCP

• Compatible with ChargePilot, The Mobility House's charging and energy management system

• Integrated 6m type 2 charging cable (Suitable for all type 2 electric vehicles)

• Compatible with services: photovoltaic energy management

• CO2-neutral Green edition

Borne X-serie AC Prise T2S_Obturateur 22kW_4G_RFID_MID 15118 Ready HW: Description coming soon

Charging station P30 x-series GREEN EDITION

• Up to 22 kW of charging power (for 10 times faster charging)

• The charging station can also be installed in single phase. That is to say that the maximum charging power would be 7.4kW

• Integrated energy meter

• Weight: 6.8 kgs

• White colour

• Protection class: IP54 protected against splashing water, suitable for outdoor use

• Mounting possibilities: Wall mounting, pedestal column

• Access protection: RFID

• Communication via LAN connection

• Controller power management: controls up to 15 expansion unit charging points

• Built-in DC fault current sensor

• Voltage: 230/400V

• Phase: three-phase

• Compatible with various back-end systems via OCPP

• Controllable via UDP and Modbus TCP

• Compatible with ChargePilot, The Mobility House's charging and energy management system

• Integrated 6m type 2 charging cable (Suitable for all type 2 electric vehicles)

• Compatible with services: photovoltaic energy management

• CO2-neutral Green edition

Borne X-serie AC Prise T2S_Obturateur 22kW_4G_RFID_MID 15118 Ready HW: Description coming soon

Charging station P30 x-series GREEN EDITION

Charging station x-series AC GREEN EDITION

NRJB-00-125095

The x-series equipment series allows local load management: when charging several electric vehicles simultaneously, the required energy demand may exceed the available charging power.

Thanks to the load management, it is possible to smooth the load curve of the connected vehicles by rescheduling, prioritization or distribution and thus to avoid costly load peaks.

Thus, the capacities are used in the best possible way, the costs are reduced in a sustainable way and the consumption of resources is optimized. The aim of the load management system is to eliminate power peaks and therefore smooth the electricity consumption.In addition, external meter data can be easily read via the Modbus TCP protocol, which makes it possible to manage charging operations depending in particular on the domestic connection.
